Manufacturer: H&T ProduktionsTechnologie
Type: SSP2-1.200-1.2x0.9-500

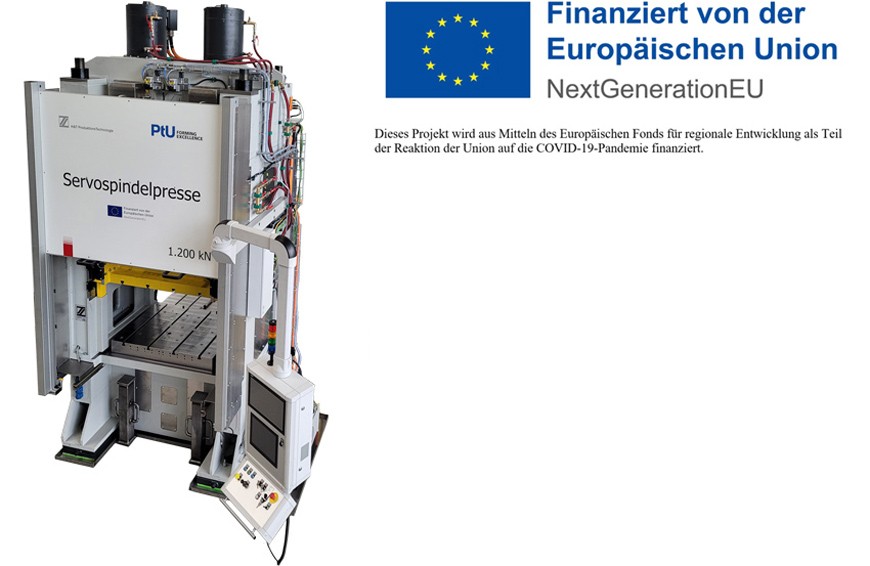

The press head is moved up and down by two roller screws, the rotation of the spindles is generated by servo motors. The position of the slide is measured at two points, which also allows the detection of misalignments. Thanks to the integrated position control of both motors, parallelism between the ram and the table can always be guaranteed, even with an off-centre force load. Each movement of the press ram is programmable with regard to speed, path, force and thus all resulting combination possibilities. The press can be used universally for sheet metal and solid forming trials.
Technical data
- 2-fold acting press
(Ejector in the ram so far only constructively prepared)
- Weight: ~ 20 t
- Height: 4,900 mm
- Width: 2,500 mm
- Depth: 1,650 mm
- Clamping surface: 1,200 x 900 mm
- Clamping possibilities: 4x 22 mm T-slots
- Table height: 1,200 mm
- Drive type ram: electric
- Maximum force ram: 1,200 kN
- Maximum slide speed: 150 mm/s
(at 750 kN ram force)
(50 mm/s at maximum force) - Slide travel range: 500 mm – 1,000 mm
- Positioning accuracy of slide: ±0.02 mm
- Drive type drawing cushion: hydraulic
- Maximum force of die cushion: 250 kN
- Maximum speed of drawing cushion: 60 mm/s
(at 125 kN die cushion force)
(30 mm/s at maximum force) - Type of die cushion: 11 quills a D40 mm
- Travel range of die cushion: 0 mm – 200 mm
- Positioning accuracy of die cushion: ±0.04 mm
Integrated sensors
- Plunger position: ±0.01 mm
- Plunger force: ± 60 kN
